USB programmer EZP2019 support 24 25 93 EEPROM, 25 FLASH

USB programmer EZP2019 support 24 25 93 EEPROM, 25 FLASH

Characteristics and description

Manufacturer
Sxemki
Producing country
China

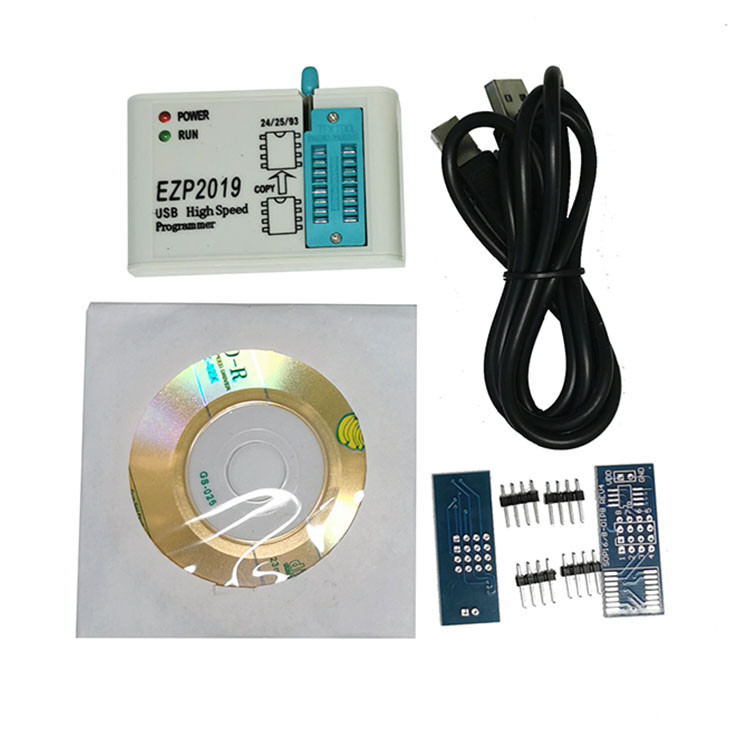

Universal programmer EZP2019 is designed for programming memory chips
24 EEPROM, 25 FLASH, 25 EEPROM, 93 EEPROM .
Allows you to work with a PC or laptop via USB port.
High-speed USB 2.0 interface (12Mbps) in read and write mode.
Possibility of autonomous copying of microcircuits.
A distinctive feature of this programmer is its high speed.
Automatic detection of the inserted microcircuit.
(you don’t need to specifically look for the desired IC in the software, just put it in the block and press Detect!
(only MS with registered ID! 25flash etc. ))
Ability to work offline without connecting to a PC.
Software and description in English.

List of supported chip models:

Support for 24, 25, 93 series chips from almost all manufacturers on the market!

******************** 25 SPI FLASH ****************************** ****************************************

AMIC : A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032
ATMEL: AT25F512, AT25D512, AT25F25, 1024, AT25F25, AT25F25, 1024, AT25F512, AT25F512, AT25F512, AT25F512 , AT25F, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641
ЭОН: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF EN10, EN25P10, EN25D2040, EN25FLF EN25F10, EN25D2040, EN25F EN25Q80, EN25T80, EN25B16 , EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25P32, EN25Q32 , EN25B64, EN25B64T, EN25F64, EN25PQ, ES25Q64, EN25F128
:ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32
ESMT: F25L004A, F25L04UA, F25L008A, F25L04UA, F25L008A, F25L08PA, F25L32MX25
512 , F25LMX25 MX25 512, F25LMX25 МОХ, F25L16 МОХ, F25L16 MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D
NexFlash: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B
SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320 EXTENSION
: S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A Stainless steel
:SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF03
ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80
WINBOND: W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25XL25, W25XAL25, W25XA25, W25XA25, W25XA25, W25XA25, W25XA25, W25XA25, W25XA25, W25XA25, W25X25, W25XA25, W25XA25, W25XA25, W25XA25 W25X32, W25X64

******************** 24 EEPROM ****************************** * ************************************

ATMEL: AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C24B, AT24C64, AT24C24B, AT24C128, AT24C24A AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B , AT24C1024, AT24C1024A, AT24C1024B

КАТАЛИЗАТОР: CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24 CAT24C12, 512W, CAT24WC12, 512W

General: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 3V, 24C64 3V, 24C64 , 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V

FAIRCHILD: FM24C01L FM24C02L FM24C03L FM24C04L FM24C05L FM24C08L FM24C09L FM24C16L FM24C17L FM24C32L FM24C64L FM24C128L FM24C512L

HOLTEK: HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24LC128, HT24 HTLC8 256, HT24LC8, HT24 HTLC8, HTLC12 256, HT24LC8

ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

МИКРОЧИП : 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025FCALCALCA64, 24C02C, 24LC024, 24LCALCALCALCA64, 24LCALCA64, 24LCALCALCA64 , 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024

NSC: NSC24C02, NSC24C02L, NSC24C64

RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM: BR24C01 BR24L01 BR24C02 BR24L02 BR24C04 BR24L04 BR24C08 BR24L08 BR24C16 BR24L16 BR24C32 BR24L32 BR24C64 BR24L64

ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24
